Robotic Grit-Blasting Surface Preparation

March 5, 2016
Specially adapted for industrial gas turbine (IGT) blades and buckets up to 1 m 60x60-in. finishing chamber 60x48-in. housing for robot Mechanized media reclamation

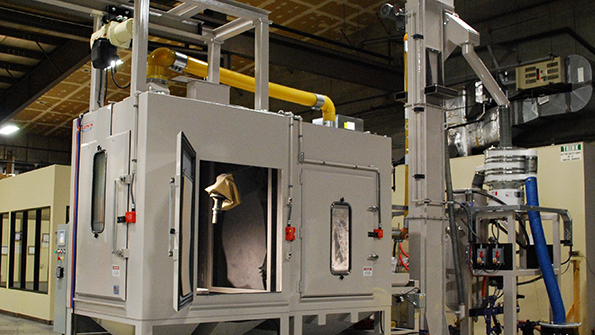

Guyson revised its Model RB-10 robotic grit-blast system to include a separate vestibule housing the nozzle-manipulating robot. It is designed for surface preparation on IGT components.

GUYSON CORPORATION developed a new version of its RB-10 robotic blast system that is specially adapted for grit blast surface preparation of gas turbine blades and buckets up to one meter in length.

The 60x60-in. finishing chamber of the robotic blasting system is designed with a heavily reinforced 60x48-in. vestibule at the rear to house an ABB Robotics IRB-2600 robot that directs a single pressure-blast nozzle. A 24-in. diameter turntable inside the blast enclosure is servomotor-driven and controlled as a seventh axis of robotic motion to enable precise orientation of the work piece during the robotic grit-blasting process cycle. For handling of heavy components, the system is provided with a crane slot and a roof-mounted jib hoist of 500-lb weight capacity.

The transfer of blast media from the finishing enclosure to the reclaimer is accomplished by a mechanical conveyor positioned below the blast enclosure.

Used grit is delivered to the base of a bucket elevator with a cascade air-wash separator at its top. Once dust and fines are extracted from the blasting grit, it passes through a vibratory screen classifier, and abrasive grain of the specified size is returned to a 10-cu.ft. pressure pot. An automatic media adder replenishes the grit supply from a storage hopper when electronic sensors detect a low media level.

Customized software was developed by the blast system designer to enable the customer to use programming data from existing spray robots to develop robot motion programs for surface preparation. Robotic motion programs for dozens of different components are stored and instantly recalled by the ABB Robotics controller, which is integrated as slave to the system’s Allen-Bradley PLC. All functions of the robotic blast system other than motion are synchronized by the PLC, including digital sensing of blast pressure, air and media supply, and detection of a full dust drum or classifier scrap drum.

Monitored blast process parameters and the currently selected blasting program, as well as data on any out-of-limit conditions, are displayed on an Allen-Bradley touch screen HMI located beside the front-loading door. The graphical interface centralizes all control functions of the robotic blasting system and also prompts the operator when basic maintenance tasks are to be performed, based on the accumulated number of blast hours.

Throughout the programmed blasting cycle, the robotic nozzle manipulator constantly and accurately maintains the correct blast angle, the stand-off distance from nozzle to component surface, the spacing of each pass and the speed of nozzle movement, even as it follows the contours of complex-shaped or asymmetric parts. This precise execution of the prescribed surface preparation routine consistently produces the desired profile with uniform roughness on all areas of the component and from one part to another.
