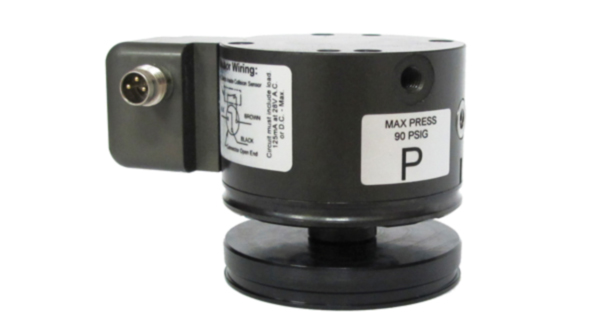

The SR48 collision sensor can comply large distances in response to any type of displacement force This gives the robot controller time to take corrective action

Robotic Collision Sensor

Sept. 7, 2013
High repeatability, large moment and torsional rotation, Supports loads in all directions

The SR-48 robotic collision sensor, new to ATI INDUSTRIAL AUTOMATION’s line of collision protection devices, has a lower operating range than the SR-61 model, making it ideal for smaller payloads.  The patented, resettable collision sensor is designed to absorb the “crash” and reset itself, virtually eliminating tool damage, downtime, and the need for human intervention.  It can be used in a variety of applications, including arc welding.

Several benefits and features of the low-cost collision sensor include:  high repeatability, large moment and torsional rotation, generous range of motion, anoptional spring that provides two trip-points, consistent break-away response, energy absorption, flexible mounting surfaces, automatic reset, rugged design for axial compliance,and adjustable sensitivity.

In operation, the collision sensor is adjusted to support typical loads experienced by the robot arm in all directions:  angular, compression, and torsional. During the collision, the SR-48 collision sensor can comply large distances in response to any type of displacement force.  This gives the robot controller ample time to take corrective action. Following the crash, the collision sensoruses precise locating components to reset within 0.001-inch of its original position.

Breakaway points are set at a given pressure independent of angular, compressive axial, or torsional load. The collision sensor has flexible mounting surfaces (easy-to-use threaded or through-hole patterns), reducing the stack height of the tooling and collision sensor assembly.  A 3-wire PNP proximity switch, set to actuate within 0.020 inch of axial motion, ensures reliable switch performance even in highly humid environments.

Visit www.ati-ia.com
